M.Gewindeb. M D376B HSSE M20 TiALN FORUM
K19625320
4317784934152
4317784934152
auf Anfrage
je
1 Stück
keine Verfügbarkeitsinformationen
Funktionen
Verkaufsdaten
Mindestbestellmenge | 1 Stück |
Bestellschritt | 1 Stück |
Beschreibung

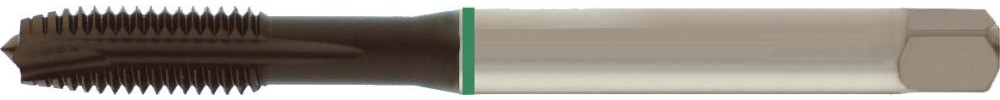

Durchgangsloch-Maschinengewindebohrer, TiAlN-beschichtet
• Metrisches ISO-Gewinde DIN 13
• HSS-E
• Form B mit Schälanschnitt (3,5–5 Gang)
• Gerade genutet
• Toleranz ISO 2 6H
• 2 x D Durchgangsloch
Merkmale
DIN | 376 B |
Gewinde | M20 |
Steigung | 2,5 mm |
Gesamtlänge | 140 mm |
Schaft-Ø | 16 mm |
Schaft-4-kant | 12 mm |
Kernloch-Ø | 17,5 mm |
Werkstoff | HSS-E |
Beschichtung | TiAlN |
Stahl <850 N | 15 |
Stahl <1000 N | 10 |
INOX | 8 |
Alu, NE-Metalle, NE-Leg. | 25 |
Kupfer, Messing, Bronze | 15 |
Luft | bedingt geeignet |
Öl | empfohlen |
Emulsion | empfohlen |
Varianten
M.Gewindeb. M D371B HSSE M2 TiALN FORUM
|
Gewinde | Steigung | Gesamtlänge | Schaft-Ø | Schaft-4-kant | Kernloch-Ø |
---|---|---|---|---|---|
M2 | 0,4 | 45 | 2,8 | 2,1 | 1,6 |
M.Gewindeb. M D371B HSSE M3 TiALN FORUM
K19625151
keine Verfügbarkeitsinformationen
auf Anfrage
je
1 Stück
Gewinde | Steigung | Gesamtlänge | Schaft-Ø | Schaft-4-kant | Kernloch-Ø |
---|---|---|---|---|---|
M3 | 0,5 | 56 | 3,5 | 2,7 | 2,5 |
M.Gewindeb. M D371B HSSE M4 TiALN FORUM
K13909960
keine Verfügbarkeitsinformationen
auf Anfrage
je
1 Stück
Gewinde | Steigung | Gesamtlänge | Schaft-Ø | Schaft-4-kant | Kernloch-Ø |
---|---|---|---|---|---|
M4 | 0,7 | 63 | 4,5 | 3,4 | 3,3 |
M.Gewindeb. M D371B HSSE M5 TiALN FORUM
K19625152
keine Verfügbarkeitsinformationen
auf Anfrage
je
1 Stück
Gewinde | Steigung | Gesamtlänge | Schaft-Ø | Schaft-4-kant | Kernloch-Ø |
---|---|---|---|---|---|
M5 | 0,8 | 70 | 6 | 4,9 | 4,2 |
M.Gewindeb. M D371B HSSE M6 TiALN FORUM
K19625153
keine Verfügbarkeitsinformationen
auf Anfrage
je
1 Stück
Gewinde | Steigung | Gesamtlänge | Schaft-Ø | Schaft-4-kant | Kernloch-Ø |
---|---|---|---|---|---|
M6 | 1 | 80 | 6 | 4,9 | 5 |
